WIC-nAM
The Cisco WIC-nAM (WAN Interface Card - n Analog Modem) is a 56k capable dial up modem, that can both originate and answer calls.
There are a number of models:
- WIC-1AM - 1 Modem
- WIC-2AM - 2 Modems
- WIC-8AM - 8 Modems
- WIC-16AM - 16 Modems !
Compatibility
WIC-1AM
The original WIC-1AM is compatible with the following models, according to the documentation
- Cisco 1700
- Cisco 2600
- Cisco 2600XM
- Cisco 3620, 3640, 3660, 3631
- Cisco 2691, 3725, 3745
It has been tested on the following hardware:
| Router Model | IOS | Working | Notes |
|---|---|---|---|
| 1760 | Yes | Does not support the v2 |

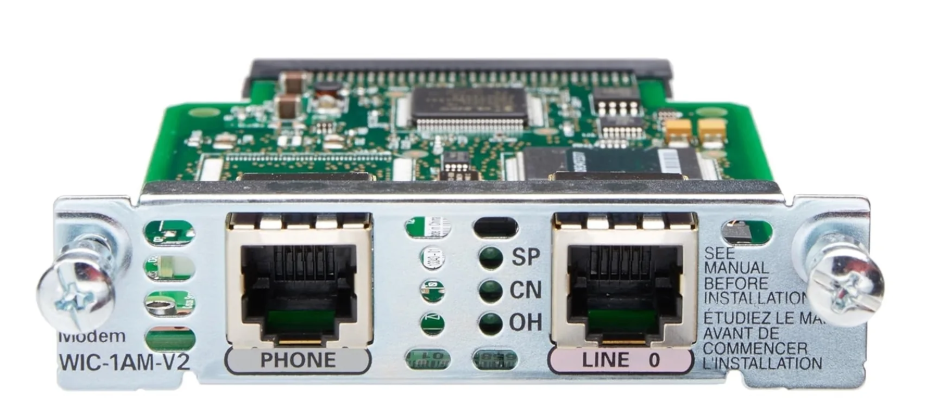

WIC-1AMv2
The WIC-1AMv2 is compatible with the following models, according to the documentation:
- Cisco 2600XM
- Cisco 2691
- Cisco 2800
- Cisco 3700
- Cisco 3800
It has been tested on the following hardware:
| Router Model | IOS | Working | Notes |
|---|---|---|---|
| 1760 | NO | Only supports the v1 | |
| 2811 | 15.1(4)M12a | Yes | |
| 2911 | Yes |
Performance
The WIC-1AMv2 will happily do almost 56k. This was tested connecting to a AS5350 via a VG310, i.e
WIC-1AMv2 (2811) -> FXS (VG310) -> E1 -> AS5350
Port Type Prot Comp Duration Tx/Rx(bps) Tx/Rx(Lvl) SNR Cfg Retrain
1 V.90 LAP-M V.42bis 22 50667/28800- 12/-17 42 In 0
Configuration
PPP Dial Out
Here's an example config snippet for IOS 15.1 on a 2811. It dials out to 920 and logs in via PPP using the credentials test@cutel.net / test. It will only do so when outbound traffic is detected, e.g ping 8.8.8.8. It will then take some time for the connection to come up, then the ping should succeed. N.B, you may wish to apply ACLs or filter inbound connections elsewhere.
!
! The chat scripts reset the modem to sane defaults and initiate the call
!
chat-script INIT "" "AT&F" "OK" "AT&D2" "OK"
chat-script MODEMCONNECT ABORT BUSY ABORT ERROR ABORT "NO CARRIER" ABORT "NO DIALTONE" "" "AT&F" TIMEOUT 5 "OK" "AT&D2" TIMEOUT 5 "OK" "ATDT\T" TIMEOUT 120 "CONNECT" "\c"
!
!
! The router *needs* an IP address somewhere for Dial Up to work, either on an interface or a loopback:
!
interface FastEthernet0/0
ip address 10.25.76.10 255.255.255.0
no shut
!
!
interface Async0/1/0
ip address negotiated
encapsulation ppp
dialer in-band
dialer idle-timeout 600 ! Timeout after 600s of no activity. Set to 0 to never timeout
dialer wait-for-carrier-time 180
! dialer enable-timeout 30 ! How long to keep the interface down for after an error
! dialer redial interval 60 attempts 60 ! How often should we re-try after a failure
dialer string 920 ! Update to the number you need to dial for your Dial Up service
dialer-group 1
async mode dedicated
no keepalive
ppp chap hostname test@cutel.net
ppp chap password 0 test
! ppp chap refuse ! If you want to DISABLE CHAP, you must "refuse" it.
ppp pap sent-username test@cutel.net password 0 test
!
!
ip route 0.0.0.0 0.0.0.0 Async0/1/0
!
dialer-list 1 protocol ip permit
!
line 0/1/0
script startup INIT
script dialer MODEMCONNECT
script activation INIT
modem InOut
transport input all
stopbits 1
speed 115200
flowcontrol hardware
!
Reverse Telnet
If you want to connect to something like a BBS rather than a PPP Dial Up service, you can "Reverse Telnet" into the modem to manually enter AT commands.
First of all you'll need to find the "line" associated with your modem card. in my case its 18:
modem-client#show line
Tty Line Typ Tx/Rx A Modem Roty AccO AccI Uses Noise Overruns Int
* 0 0 CTY - - - - - 0 0 0/0 -
1 1 AUX 9600/9600 - - - - - 0 0 0/0 -
0/1/0 18 TTY 115200/115200- inout - - - 5 0 0/0 -
Add the line number to 2000 to get the reverse telnet port number. E.G 2000 + 18 = 2018
Telnet to an IP on the router with the port number:
telnet 10.25.76.10 2018
Dial into your favourite BBS:
ATDT 930
To disconnect:
Press Ctrl + Shift + 6 then x, then disconnect and then hit enter to confirm.
Useful commands
View the connection speed: show modem 0/1/0
Close the connection: clear interface Async0/1/0
The following debug might be useful:
debug chat
debug ppp authentication
debug ppp negotiation
debug dialer events
