AS5350

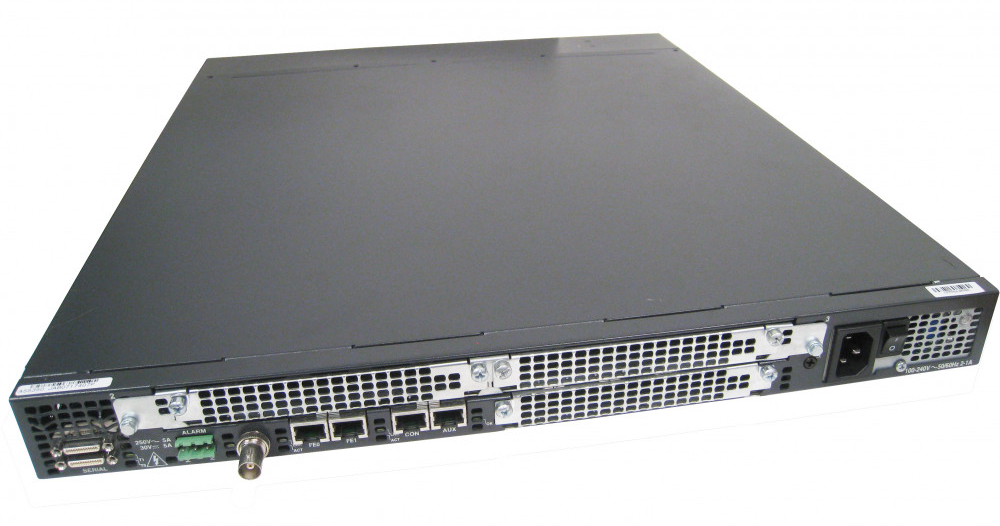

The Cisco AS5350 "Universal Gateway" is a big box of DSPs that can provide various functions including modem call termination, email-to-fax, fax-to-email, and act as a TDM-to-VoIP gateway. It feels like we've only scratched the surface of what it can do, but what we've uncovered so far is documented here.
Note
At present this documentation is somewhat sparse, and doesn't cover how to get calls into the AS5350. We'll hopefully add more in the near future.
Use cases
Forwarding PPP to an LNS, and steering BBS connections with RADIUS
At CuTEL events we use the AS5350 for 2 main functions - providing PPP "Dial Up internet" services, and to allow traditional modems to connect to Telnet BBSs. As a general rule we like to keep the Cisco configuration relatively static and handover control to other devices.
For Dial Up we forward all the PPP to an LNS via L2TP. At EMF 2026 we will be using a Juniper MX as an LNS, which can forward L2TP to other LNSs based on RADIUS responses using a feature it calls L2TP Tunnel Switching (We'll cover this in more detail in future). For BBS access we use "preauthentication" via RADIUS to send calls to a particular number to the associated Telnet service.
Resource Pools
We use resource-pool profiles to steer calls to specific groups of modems which have different settings applied. Noe, there is a potential downside to this setup. As the pools are statically defined with 40 modems each, if 41 PPP users connect the 41st call will fail rather than overflowing to the other 80 idle modems. In practice, we rarely see enough usage for this to become an issue.
We have 3 profiles:
ppp
These are grouped as a "Group-Async" interface with ppp enabled. We also apply a "modemcap" to apply various settings to the modems to provide a premium 56k experience.
viewdata
viewdata is a strange beast that uses 7E1 encoding, and v.23 (1200/75 baud). We apply a special modemcamp to force the AS5350's modems into the correct mode.
bbs
BBSs tend to use standard 8N1 encoding, and the AS5350 will happily handle falling back to the fastest mode the originating modem will support, so we don't do anything special here - we apply the same modemcap as the ppp lines.
Steering BBS access with RADIUS
Rather than hardcoding BBSs into the AS5350, we use RADIUS to dictate which number routes to which BBS. The flow is documented below:
When a call arrives the AS5350 will send a RADIUS Access-Request. Note the User-Name and Called-Station-Id are both the called number:
RADIUS Access-Request
User-Name: 920
User-Password: (Hashed Password)
Service-Type: Outbound (5)
Called-Station-Id: 920
NAS-Port-Type: Virtual (5)
NAS-Port: 20030
NAS-Port-Id: Serial3/0:30
NAS-IP-Address: 104.18.2.24
The RADIUS server then responds with an Access-Accept with additional attributes to tell the AS5350 which BBS to connect to. It can provide a different Login-IP-Host and Login-TCP-Port combination depending on the User-Name or Called-Station-Id.
In the example response below, the modem is bridged to a BBS on 104.18.3.24:2015:
RADIUS Access-Accept
Service-Type = Login-User (1)
Login-Service = Telnet (0)
Login-IP-Host = 104.18.3.24
Login-TCP-Port = 2015
Cisco-AVPair = "preauth:auth-required=0"
Cisco-AVPair = "preauth:service-type=1"
The modems will then negotiate, and once a connection is established the modem and telnet backend will be bridged.
Configuration
First of all we configure "dnis groups" - groups of numbers which point to each type of service. They can accept individual numbers, a range of numbers, or both:
dialer dnis group ppp
number 1000
dialer dnis group bbs
number 1001
range 1002 2000
dialer dnis group viewdata
range 2001 2999
Enable and configure the resource-pools that are used to associate a "profile" to a pool of modems:
!
resource-pool enable
!
resource-pool group resource ppp
range port 1/0 1/39
!
resource-pool group resource bbs
! These appear as two ranges as the modems are split across two cards
range port 1/40 1/59
range port 2/0 2/19
!
resource-pool group resource viewdata
range port 2/20 2/59
!
Configure resource-pool profiles for "customers". These associate a dnis group (telephone numbers) with a resource-pool group (group of modems)
resource-pool profile customer ppp
limit base-size all
limit overflow-size all
resource ppp speech
dnis group ppp
!
resource-pool profile customer bbs
limit base-size all
limit overflow-size all
resource bbs speech
dnis group bbs
!
resource-pool profile customer viewdata
limit base-size all
limit overflow-size all
resource viewdata speech
dnis group viewdata
Set the country you're located in to optimise the modems:
spe country united-kingdom
Create the modemcap entries for "regular" calls and "viewdata" calls:
modemcap entry regular:MSC=&FS29=6S64=0S21=1S12=8S13=0S14=1
modemcap entry viewdata:MSC=&FS0=0S29=4S64=9S21=0S12=7S13=1S14=1ATE1
Configure the lines (modems) to handle each type of call:
! Configure the lines for PPP. Nothing special here.
line 1/00 1/39
modem InOut
modem autoconfigure type regular
!
! The following lines are used for BBS calls. They appear as two blocks because they span two modem cards
line 1/40 1/59
modem InOut
modem autoconfigure type regular
escape-character NONE
autohangup
!
line 2/00 2/19
modem InOut
modem autoconfigure type regular
escape-character NONE
autohangup
!
! The following lines are for viewdata, so we apply the viewdata modemcap to handle v.23 7E1
line 2/20 2/59
modem InOut
modem autoconfigure type viewdata
escape-character NONE
autohangup
Configure the Group-Async interfaces:
! This Async Group is used for PPP connections
interface Group-Async0
ip unnumbered GigabitEthernet0/0
ip virtual-reassembly in
encapsulation ppp
dialer in-band
dialer idle-timeout 600 ! Connections are dropped after 600s of no activity
dialer-group 1
async mode dedicated
no keepalive
ppp authentication pap
group-range 1/00 1/39
!
! This Async Group is used for everything else. It mostly exists to avoid having 80 individual interfaces.
interface Group-Async1
no ip address
async mode interactive
group-range 1/40 2/59
Configure Virtual Private Dialup Network (VPDN) to forward PPP calls to an LNS. Remember to update the IP and tunnel password for your LNS:
vpdn enable
vpdn search-order dnis
!
vpdn-group ppp
request-dialin
protocol l2tp
dnis ppp
initiate-to ip 192.168.9.2
l2tp tunnel password 0 SECRET
Configure the RADIUS server. Remember to update the IP and secret:
radius-server host 192.168.9.5 auth-port 1812 acct-port 1813
radius-server key 0 SECRET
Configure aaa and preauth. Before you do, make sure you have a user configured. Failure to do so might result in you getting locked out the device:
username admin privilege 15 secret 0 YOUR_PASSWORD
!
aaa new-model
!
aaa authentication login default local
aaa authentication enable default enable
aaa authorization console
aaa authorization exec default local if-authenticated
!
aaa preauth
group radius
dnis bypass ppp ! We don't do preauth for PPP, it goes straight to the LNS
dnis required
You should now be able to dial into your PPP, Viewdata and Dialup services.
